Fine-Cleaner FAU

<< Previous

Send Inquiry

Product Code : 12

Price And Quantity

Minimum Order Quantity
1 Unit
Price Range
100000.00 - 800000.00 INR/Unit

Product Specifications

Product Type
Fine-Cleaner
Material
Stainless Steel

Computerized
No
Control System
Manual

Installation Type
Free Stand
Voltage
220-440 Volt (v)

Product Description

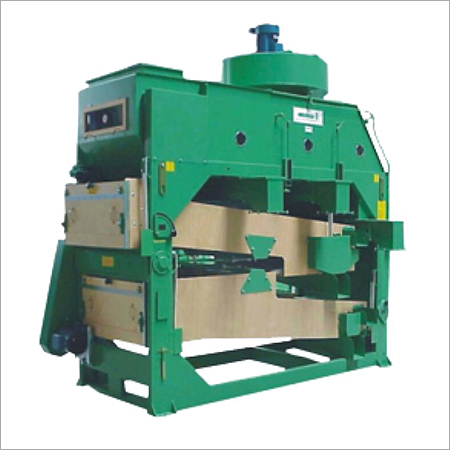

Fine-Cleaner FAU

FAU-1000 / -1250 / -1500

Fine-Cleaner FAU

FAU-1000 / -1250 / -1500

Widely used seed and grain cleaning plants, these Fine-Cleaner FAU is made using advanced technologies and high quality steel. Manufactured in line with the industry laid quality guidelines, these cleaners are fitted with feeding apparatus and feed roll. In addition to this, the aspiration chamber of these cleaners is fitted with waste augers, an integral fan, speed drive and motors. These have screen systems which consists of two sieveboats which contains 2 screen layers each consisting of 3 screen parts. These sieveboats are featured with multi-flow variable screen system and variable speed drive. Moreover, we are providing these cleaners in both standard as well as custom ordered specification.

Technical Specifications:

	FAU-1000	FAU-1250	FAU-1500
Motor, fan	5.50 kW	7.50 kW	7.50 kW
Motor, sieveboats	2.20 kW	2.20 kW	2.20 kW
Screen size L=800 mm x W	1000 mm	1250 mm	1500 mm
Screen area	9.60 m2	12.00 m2	14.40 m2
Estimated capacity on wheat	8 t/h	10 t/h	12 t/h
